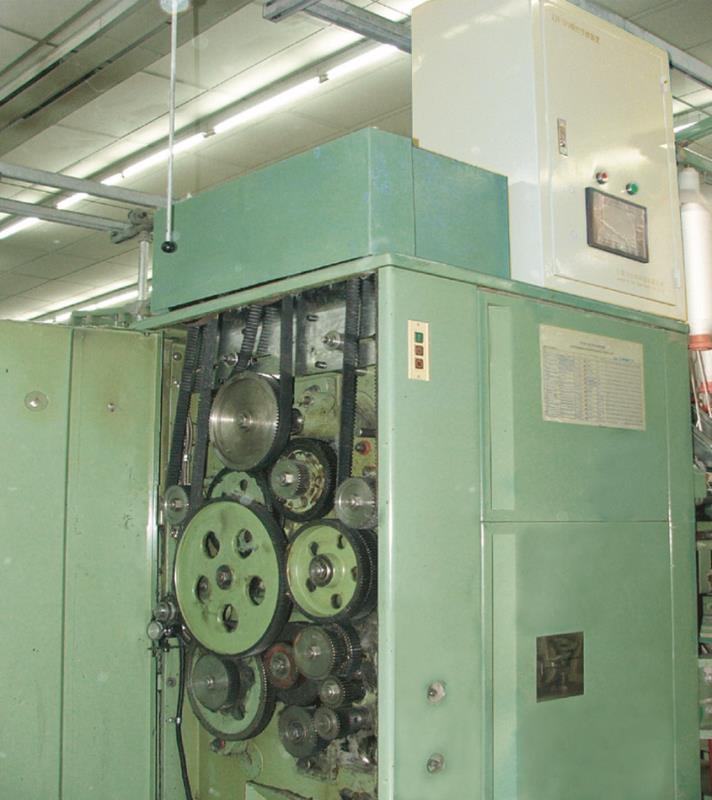

ZJS-SF5变支变捻竹节纱装置

ZJS-SF5 count&twist-changeable slubby yarn spinning device

ZJS-SF5型变支变捻竹节纱装置是在原有的ZJS-SF3D竹节纱装置上改进而成，可以同时改变三根罗拉的速度，前罗拉和忠厚罗拉分别由两台伺服电机带动，可以根据工艺不同产生不同的前罗拉转速和中后罗拉转速，此装置具有原有竹节纱装置的所有功能，并可以纺超长竹节和超短竹节。

1.变捻竹节纱

2.超长竹节纱

3.前罗拉变速竹节纱

ZJS-SF5 count & twist-changeable slubby yarn spinning device is based on former ZTS-SF3D slubby yarn spinning device, which can change the speed of 3 rollers at the same time. The front and post-median rollers are driven by two servomotors, which based on the different techniques to product the different speed of the front and post-median rollers. This device not only has all the functions as former slubby yarn spinning device, buy also can spin ultra-long yarn and ultra-short slubby yarn.

1.twist-changeable slubby yarn

2.over length slubby yarn

3.speed-change of the front roller slubby yarn
